Cogent3 tree

This example shows how to use iplotx to plot trees from cogent3, the successor to pycogent.

from cogent3.phylo import nj
import numpy as np
import iplotx as ipx
import matplotlib.pyplot as plt

nleaves = 8
distance_dict = {}
for i in range(nleaves):
    for j in range(i):
        distance_dict[(str(i), str(j))] = np.random.rand()
tree = nj.nj(distance_dict)
ipx.plotting.tree(
    tree,
)

<iplotx.tree.TreeArtist object at 0x7af38ff22490>

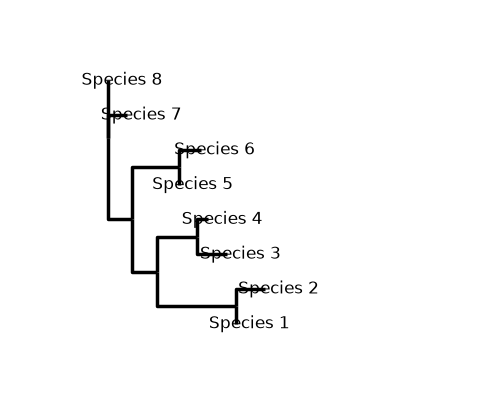

To add labels to the leaves, you can use the vertex_labels argument as a dictionary. Moreover, the plot can be customised further using hmargin (horizontal label margin) and some matplotlib settings.

leaf_labels = {leaf: f"Species {i + 1}" for i, leaf in enumerate(tree.tips())}
fig, ax = plt.subplots(figsize=(5, 4))
ipx.plotting.tree(
    tree,
    ax=ax,
    vertex_labels=leaf_labels,
    vertex_label_hmargin=10,
)
ax.set_xlim(-0.2, 1.5)

(-0.2, 1.5)

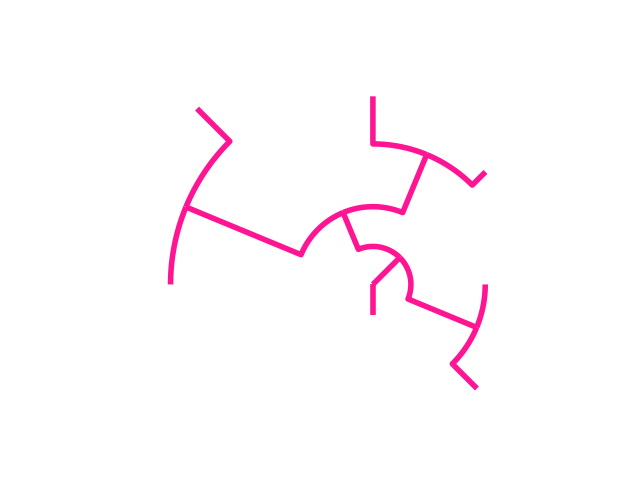

iplotx can compute a radial tree layout as well, and usual style modifications work for trees same as networks:

ipx.plotting.tree(
    tree,
    layout="radial",
    style=[
        "tree",
        {
            "edge": {
                "color": "deeppink",
                "linewidth": 4,
            },
        },
    ],
    aspect=1,
)

<iplotx.tree.TreeArtist object at 0x7af390d9e0d0>
