3D layouts

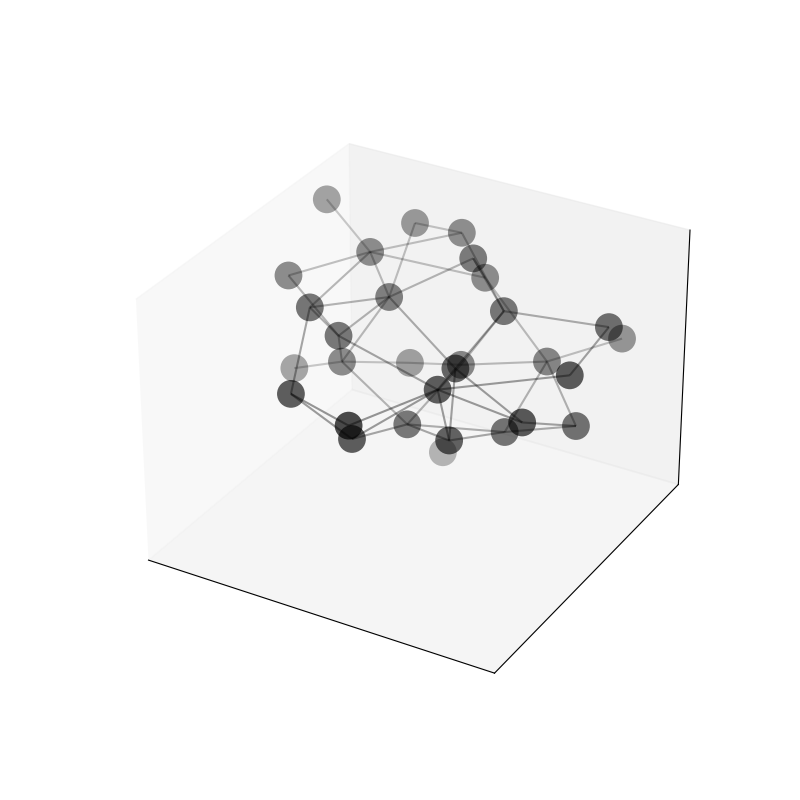

This example shows how to visualise graphs or networks in 3D using iplotx. Of course, a 3D layout is needed for this. Here, we use the Fruchterman-Reingold layout algorithm from igraph to generate a 3D layout.

Note

3D visualisation is most useful when used interactively, so you can rotate and pan the plot to inspect it from different angles. Matplotlib supports this both in Jupyter notebooks and in IPython via multiple interactive backends (e.g., TkAgg, Qt5Agg, etc.). These plots can also be saved as static images (the ones you see below were generated this way), however these static images can be quite difficult to interpret.

import igraph as ig
import iplotx as ipx

# Make the graph
g = ig.Graph.Erdos_Renyi(30, m=50)

# Make a 3D layout
layout = g.layout_fruchterman_reingold_3d()

# Visualise the graph in 3D
ipx.network(
    g,
    layout,
    vertex_alpha=0.7,
    edge_alpha=0.4,
    figsize=(8, 8),
)

[<iplotx.network.NetworkArtist object at 0x7af3e8f94e10>]

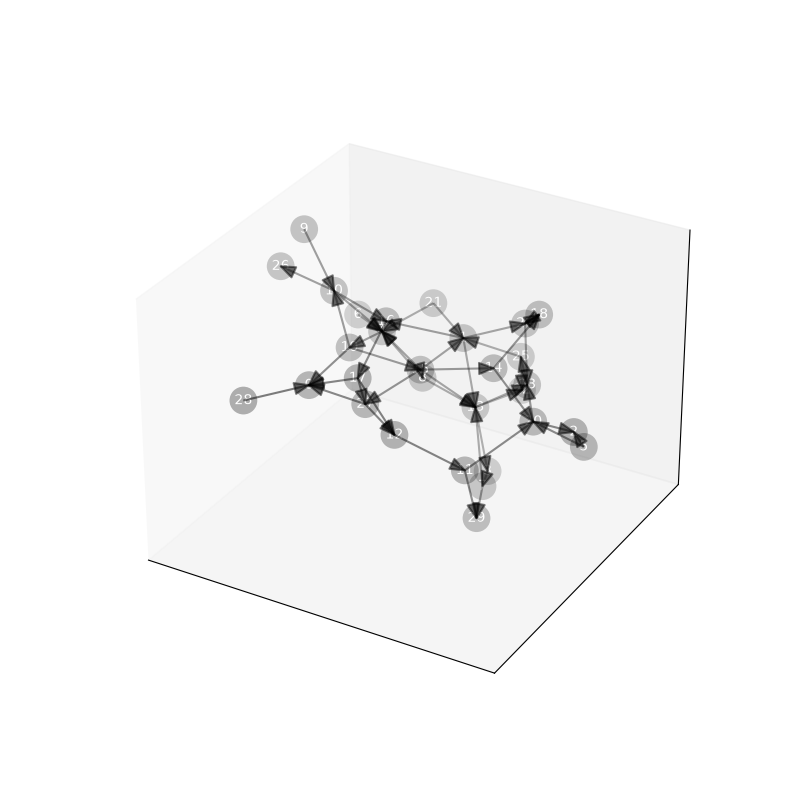

Below is a variation using arrows and vertex labels:

import igraph as ig
import iplotx as ipx

# Make the graph
g = ig.Graph.Erdos_Renyi(30, m=50, directed=True)

# Make a 3D layout
layout = g.layout_fruchterman_reingold_3d()

# Visualise the graph in 3D
ipx.network(
    g,
    layout,
    vertex_alpha=0.3,
    edge_alpha=0.5,
    vertex_labels=True,
    figsize=(8, 8),
)

[<iplotx.network.NetworkArtist object at 0x7af3f0137890>]

Warning

3D visualisation does not support all features of 2D visualisation yet. Curved edges, waypoints, and edge labels are currently unsupported. PRs are welcome!
