Simple path

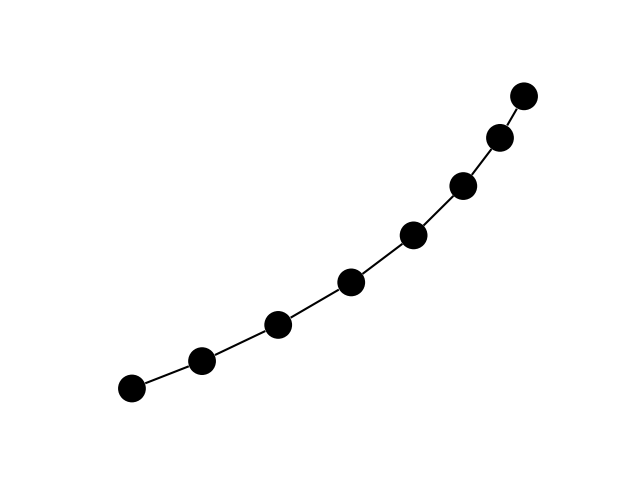

A minimal example of using iplotx together with networkx.

import networkx as nx
import iplotx as ipx

G = nx.path_graph(8)
pos = nx.spring_layout(G, seed=47)  # Seed layout for reproducibility
ipx.network(G, layout=pos)

[<iplotx.network.NetworkArtist object at 0x7dd1fa0265d0>]

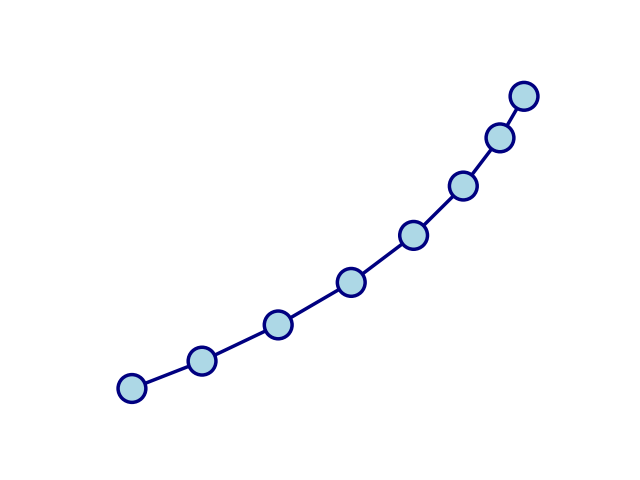

We can change the color of the vertices and edges with a touch of style:

ipx.network(
    G,
    layout=pos,
    style={
        "vertex": {
            "facecolor": "lightblue",
            "edgecolor": "navy",
            "linewidth": 2.5,
        },
        "edge": {
            "color": "navy",
            "linewidth": 2.5,
        },
    },
)

[<iplotx.network.NetworkArtist object at 0x7dd1fa0ea710>]
